6 systems in one
|

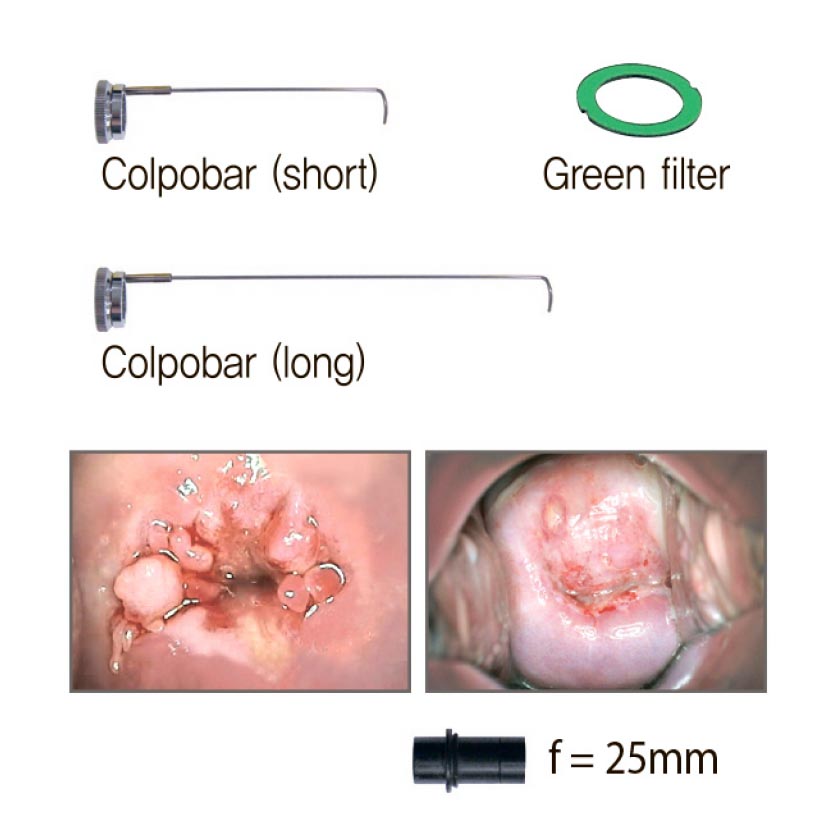

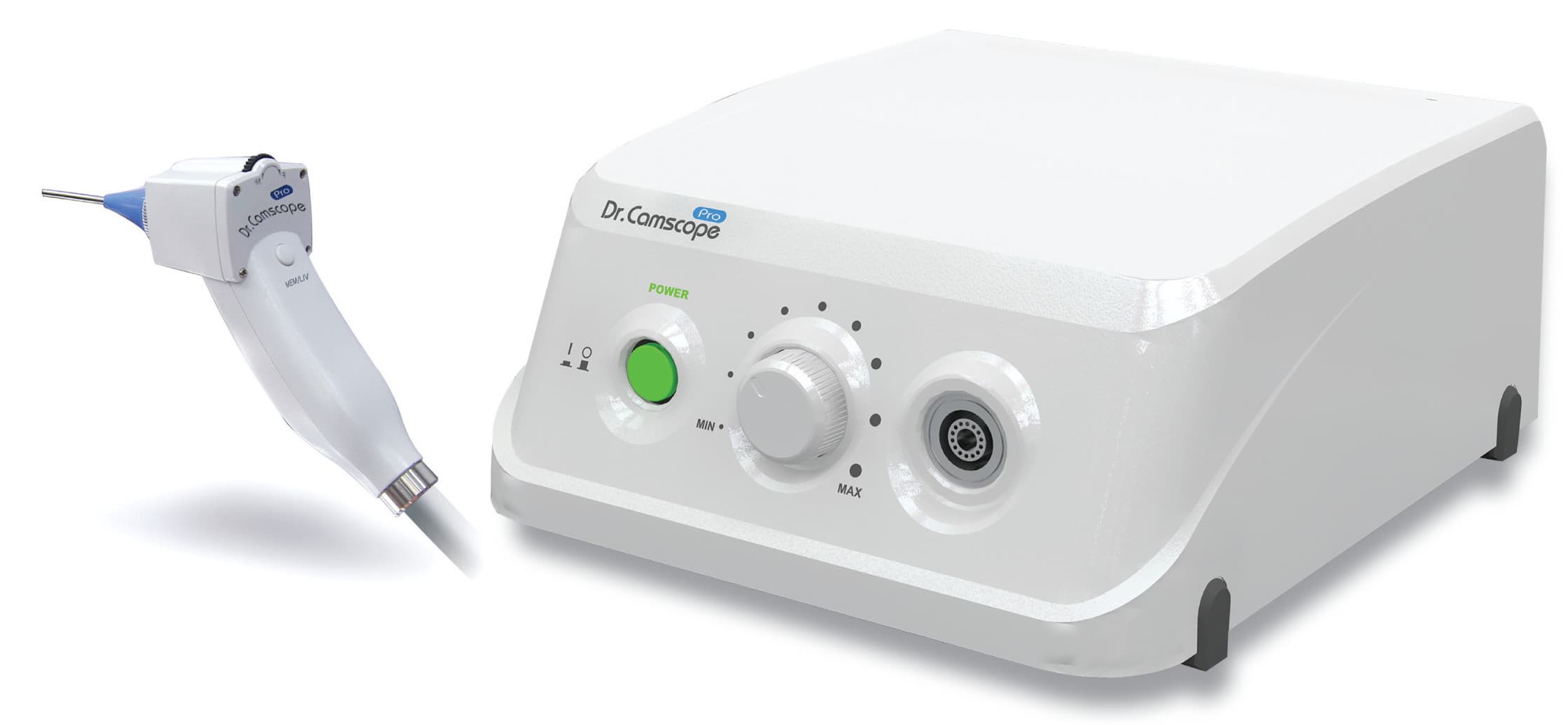

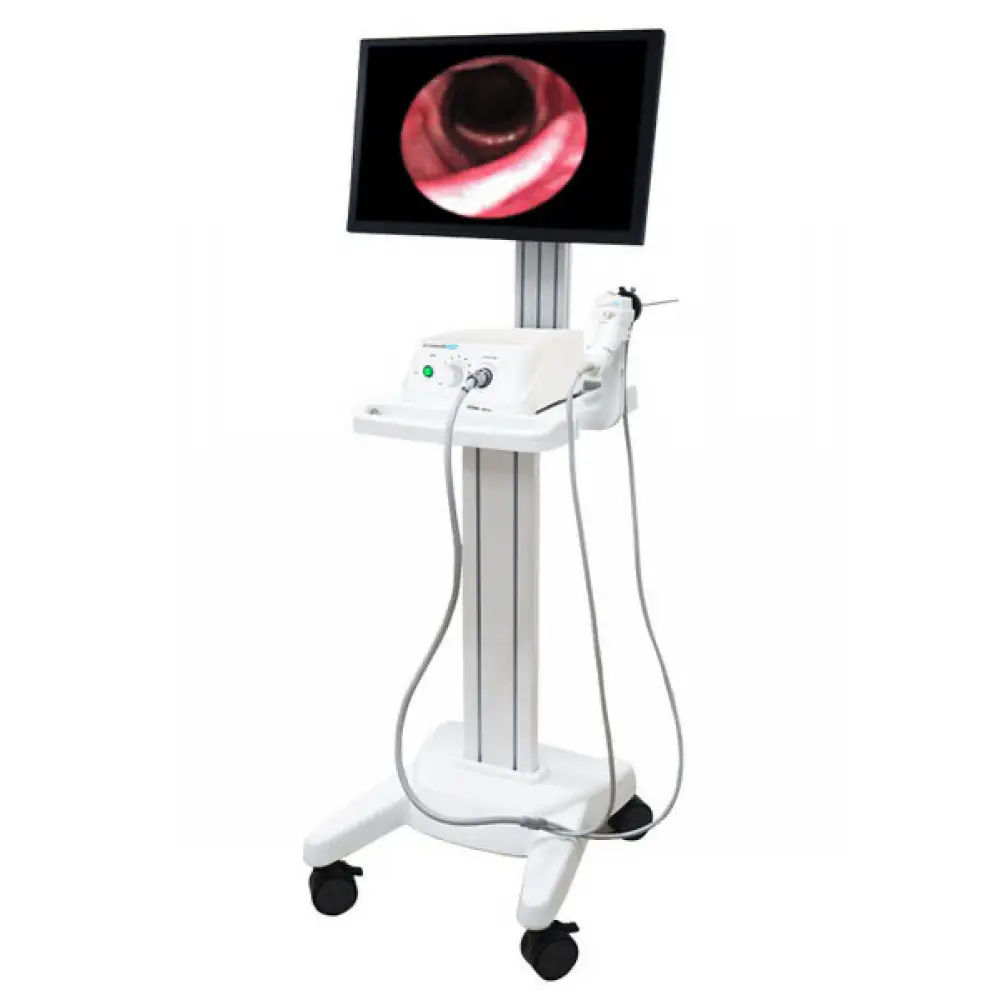

DSC-Pro

Video Colposcope

DSC-102 Pro

Easy diagnosis of the cervix with colposcopy; built-in green filter helps detect cervical erosion, CIN and CIS.
Video Colposcope

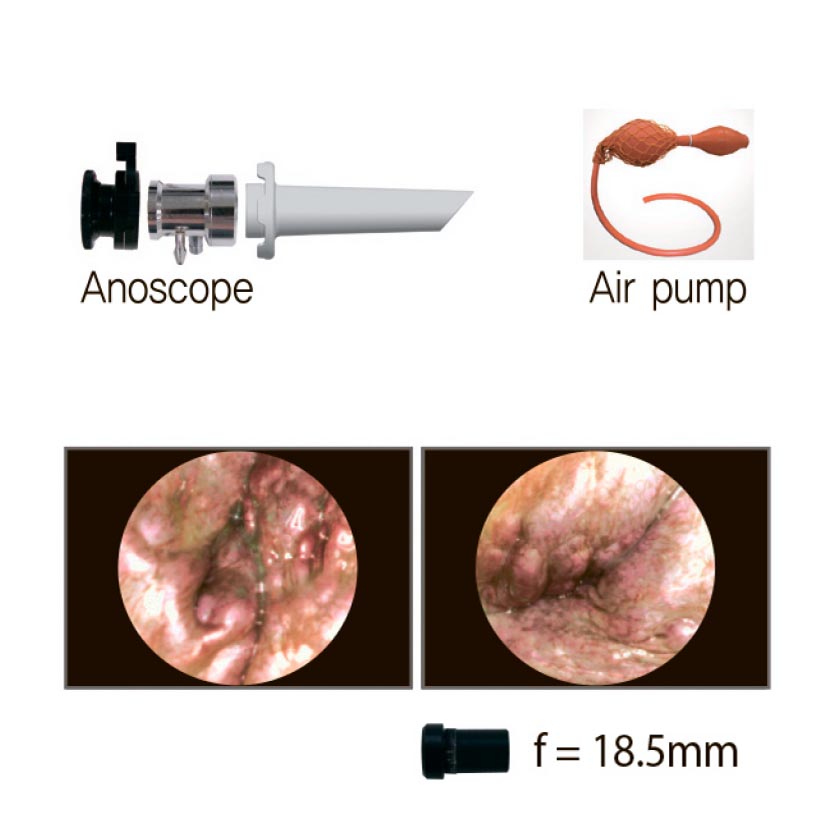

Video Rectoscope

DSC-103R Pro

Anoscope for internal or external hemorrhoids, anal fissure and anal fistula.
Video Rectoscope

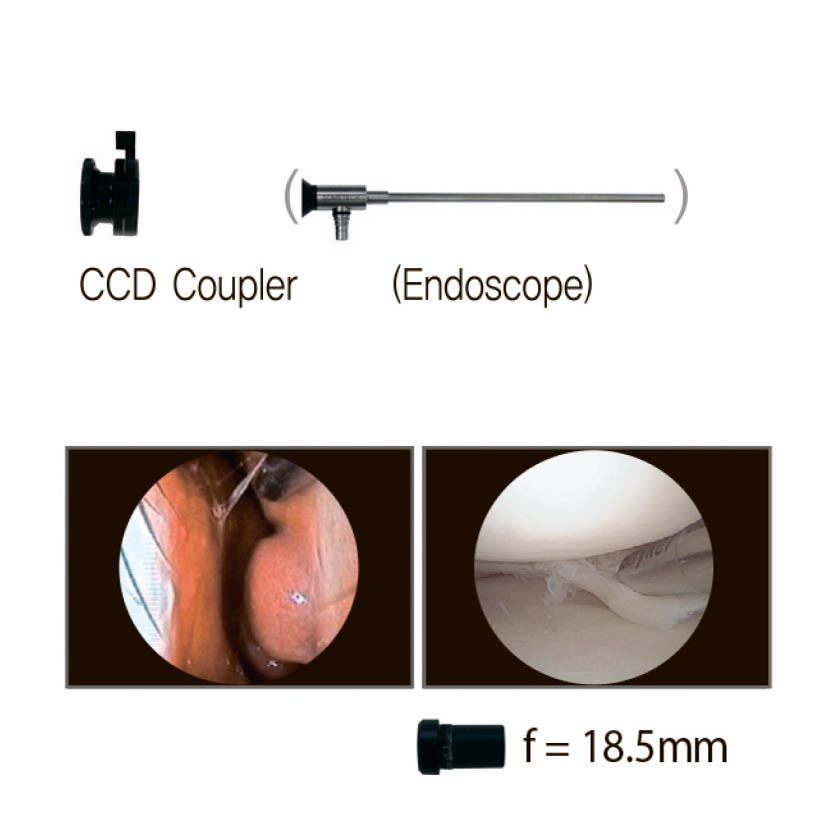

Endoscopic Camera System

DSC-103E Pro

Compatible with various endoscopes; connect rigid endoscopes via durable CCD coupler.
Endoscopic Camera System
Shop product image!

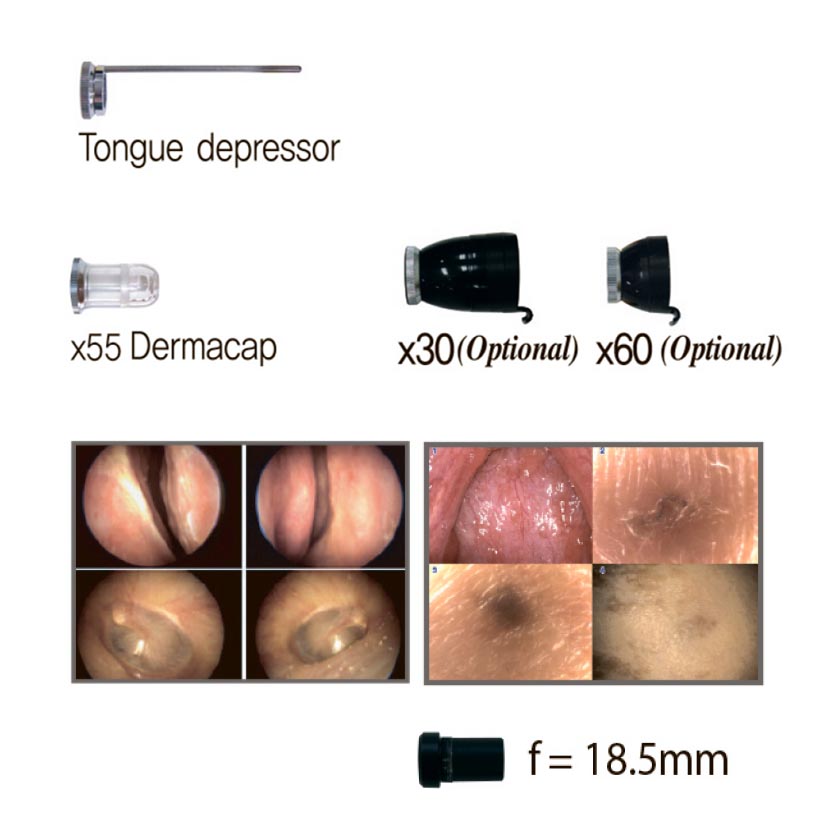

Video Otoscope Camera System

DSC-104T Pro

Diagnose the eardrum and external auditory canal without inserting the telescope deeply. 3 mm scope optimised for pediatrics; accessories for tonsil, larynx and skin.
Video Otoscope Camera System

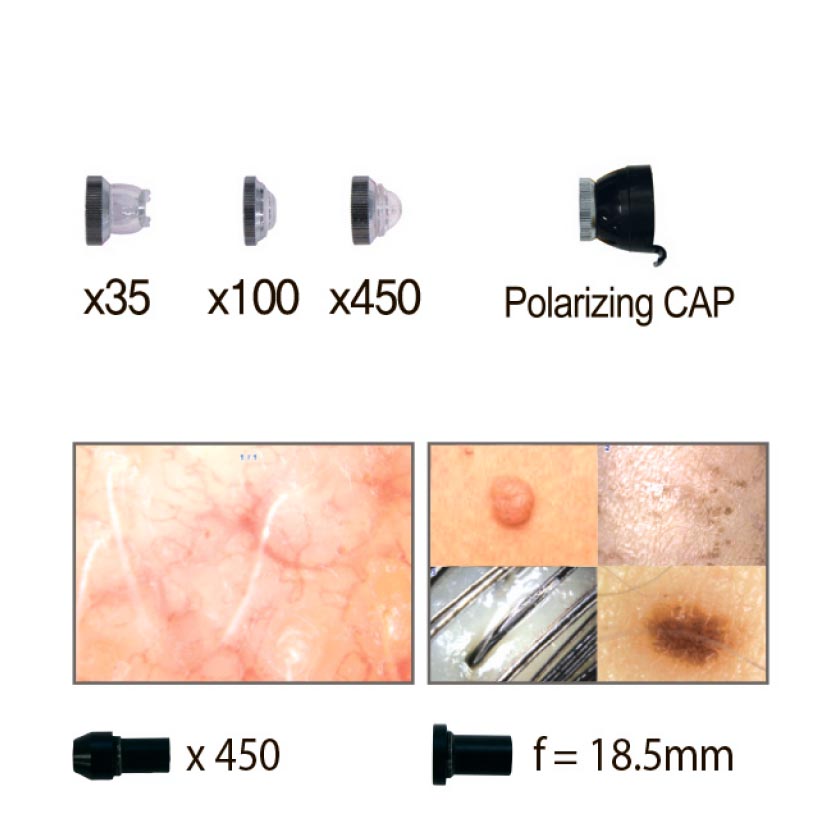

Video Dermascope

DSC-105 Pro

Side illumination reduces reflection to visualise pores and keratin clearly. High magnification with various lenses and caps; epidermis and pigmentation can be examined.
Video Dermascope

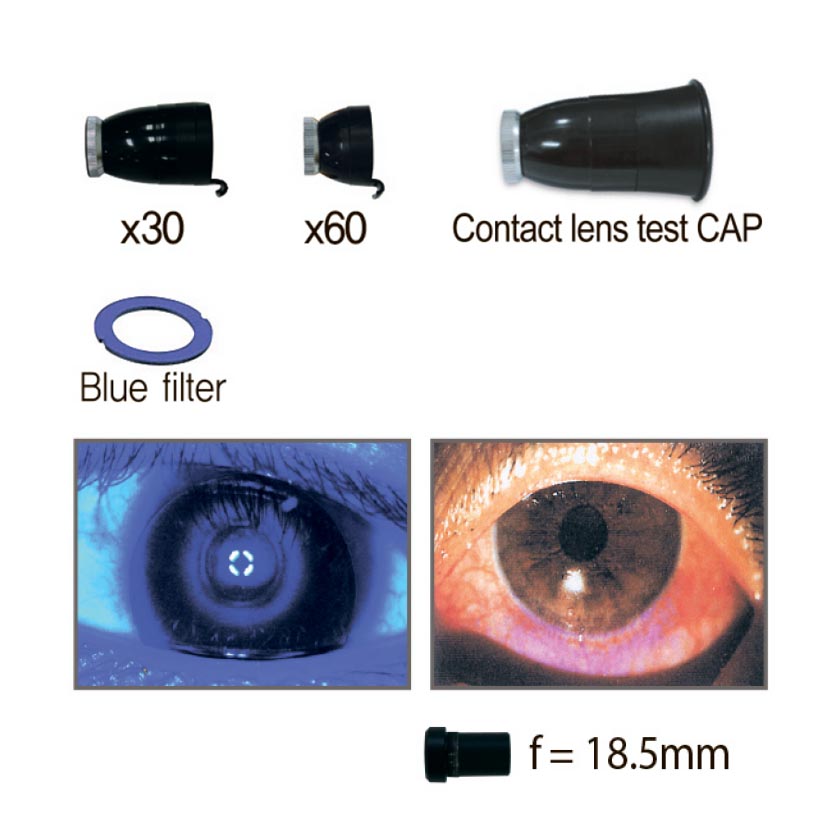

Video Scope for Optician Camera System

DSC-108 Pro

Check contact lenses, conjunctivitis and iris.
Video Scope for Opticion Camera System

Optimal solution for telemedicine

A medical camera designed for remote imaging, treatment and communication over secure networks.

Full HD (1080i / 60 Frames)

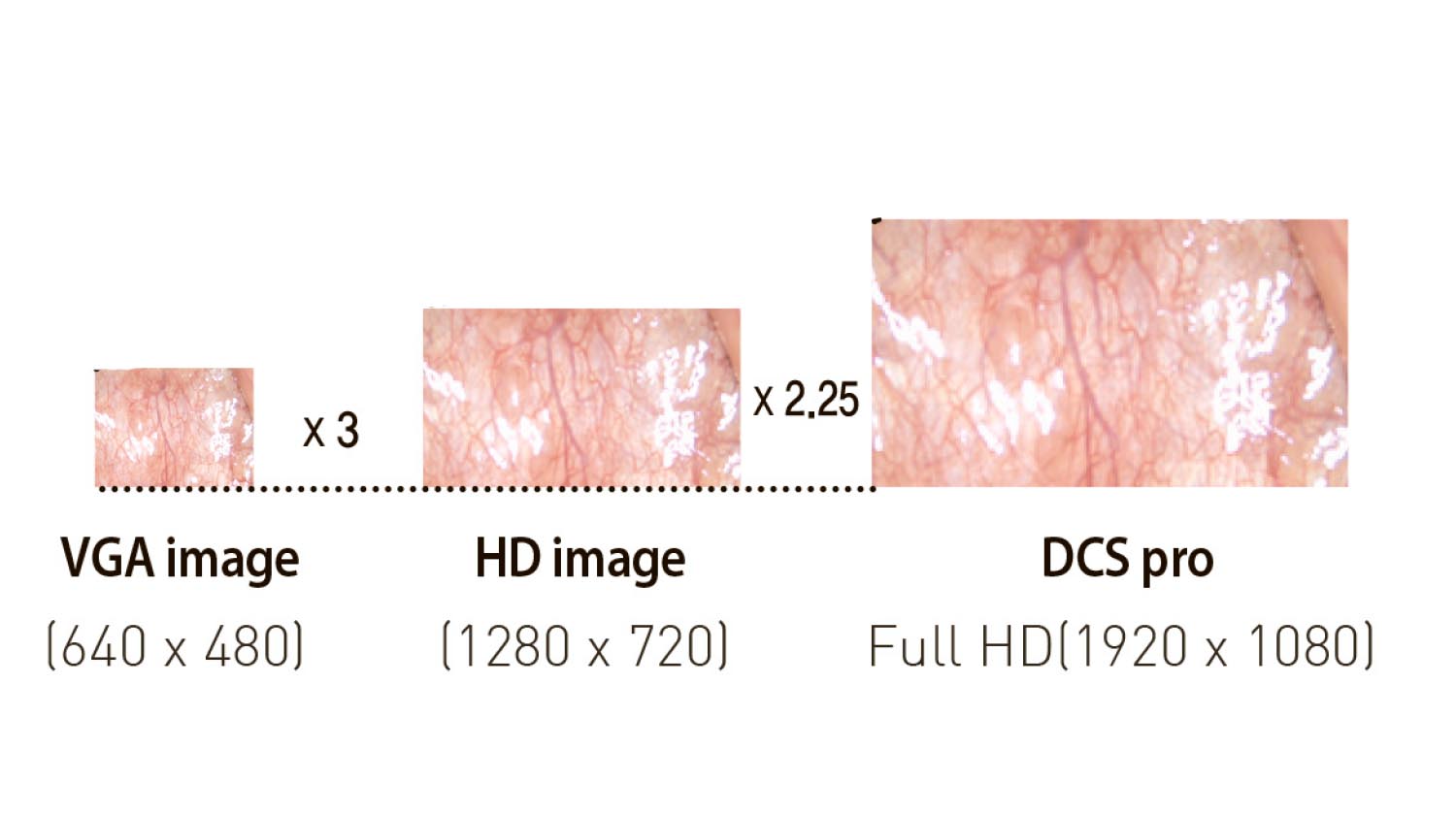

Image quality comparison

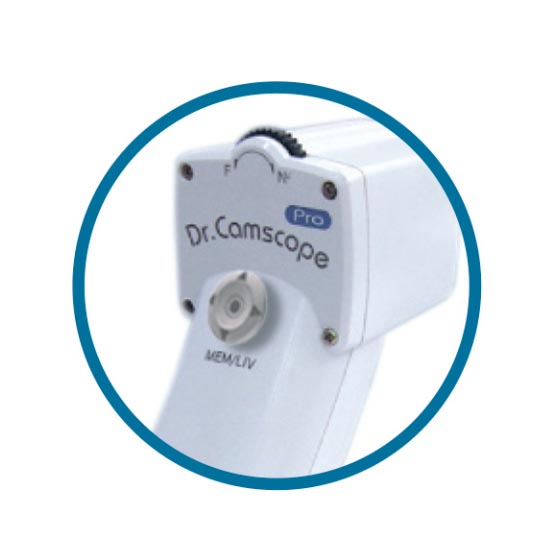

Convenient joystick

Directional joystick allows freeze, save and zoom functions with ease.

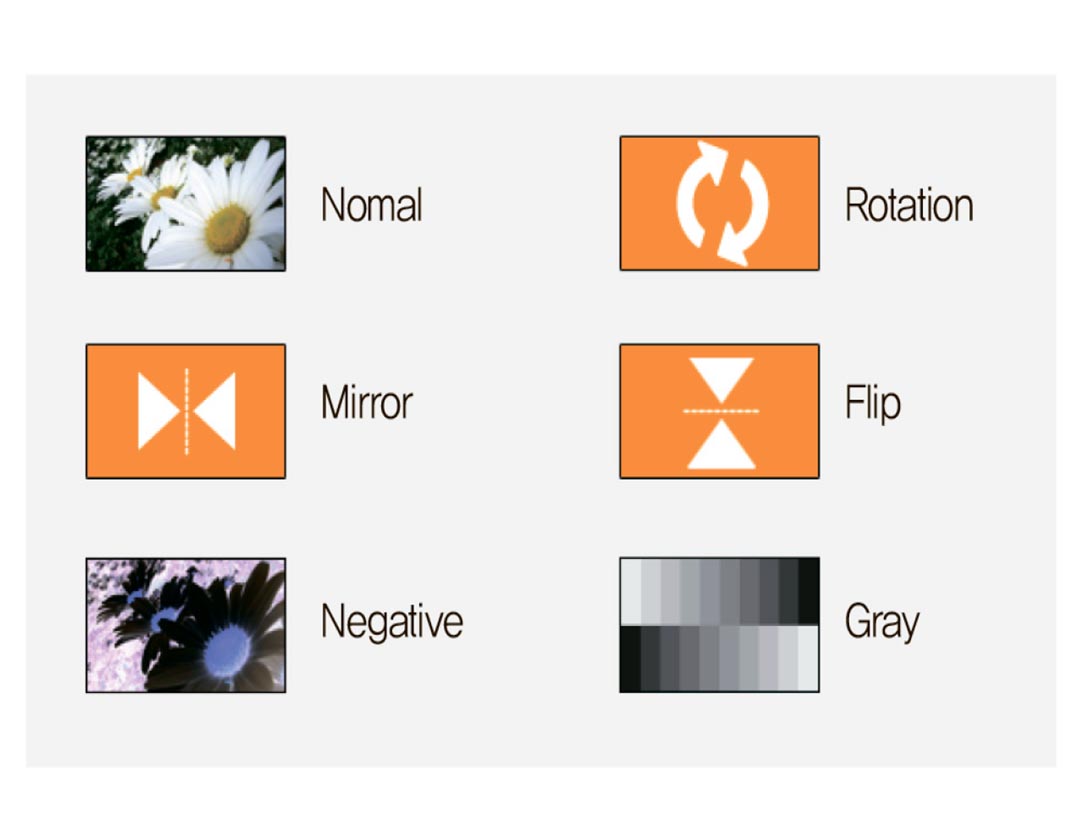

Image Conversion

Images can be converted in various ways.

Image management

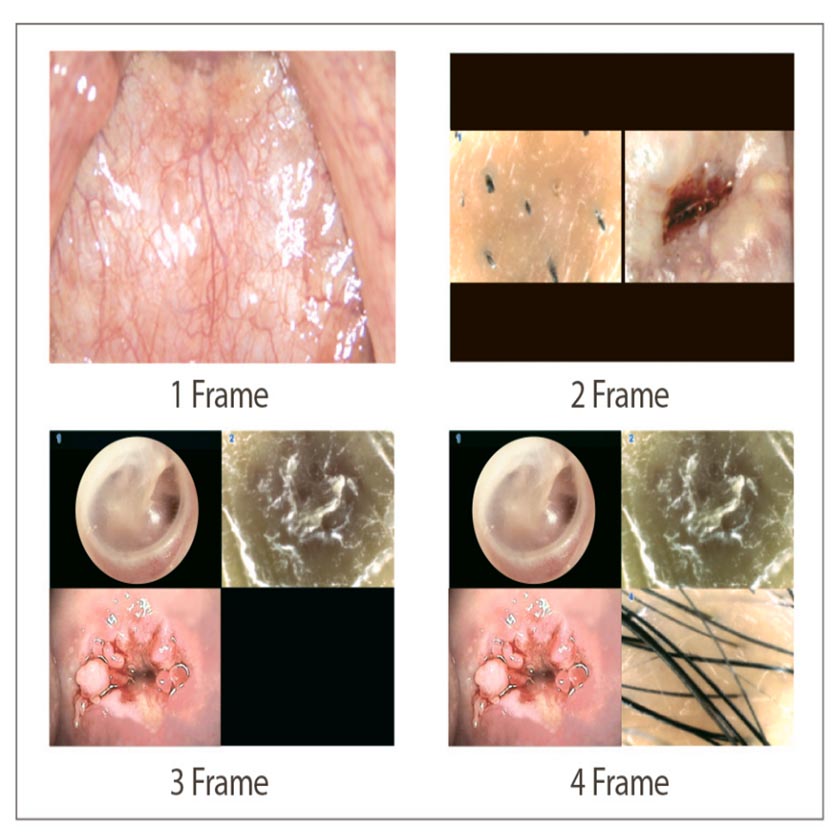

Save to internal memory (SD card) or USB; manage images on the main unit or via PC. Compare and display 1–4 frames.

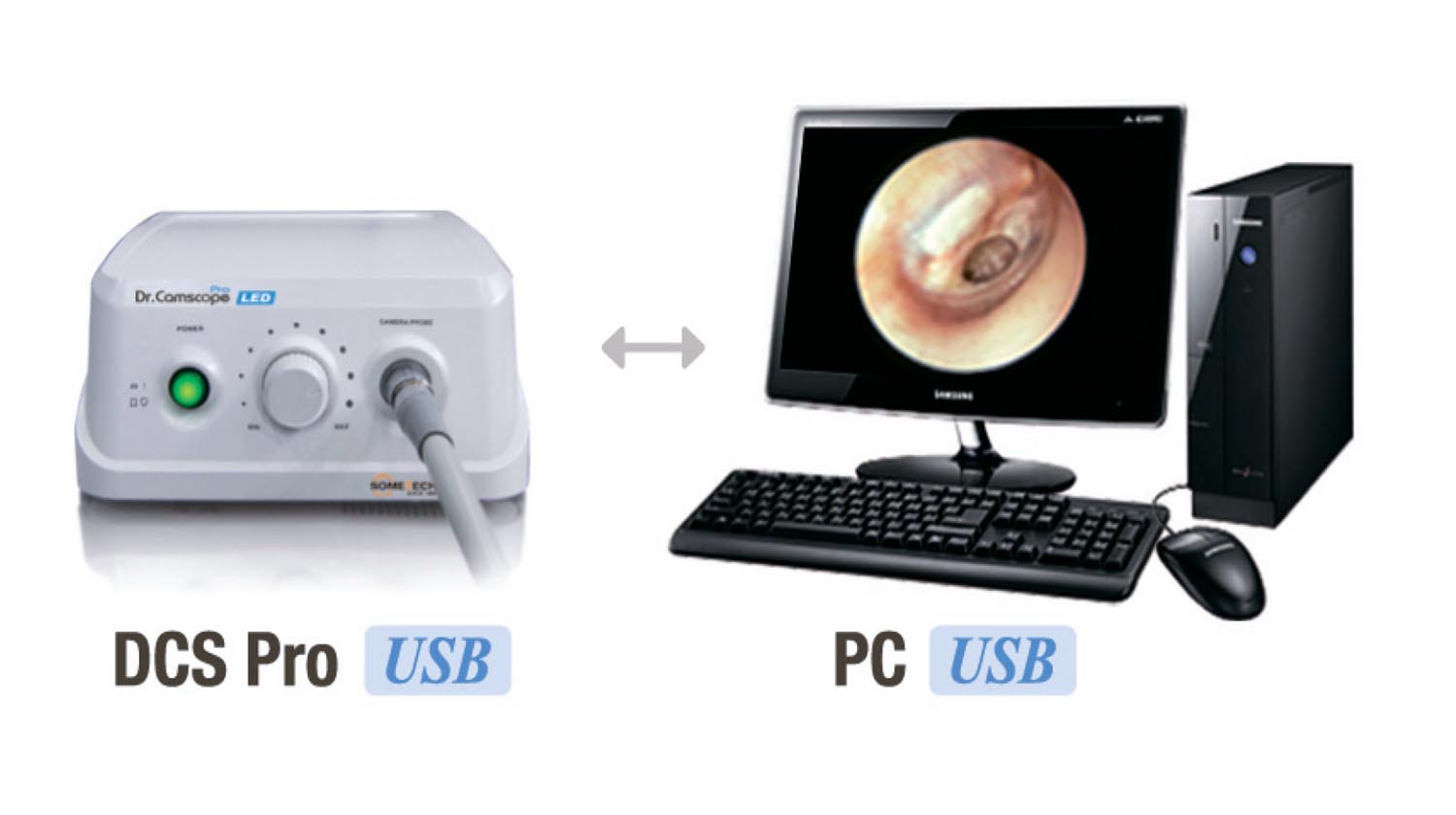

Easy connection with PC/Laptops

Connect via USB 2.0 and save digital data on a computer.

18W LED lamp

Brighter than a 100W halogen lamp. 4800°K colour temperature (near daylight) delivers clearer images.

DSC-Pro Specifications

Functions
FULL-HD Live Image (16:9)
Comparison Image
USB 2.0 PC Slave Mode
Image Adjustment
- Brightness, Sharpness, Contrast, Gamma, Exposure
- Image Conversion
- Selectable colour mode (User 1/2/3/Default)
- Stored Image File Playback
- Create Folder, Delete Folder & File
- System Time setting
Camera Resolution
1920×1080
Video Out
1920×1080i, 60 frames, HDMI
PC Interface
USB 2.0 / Slave Mode
Directly connected to the PC application
Internal Storage
32 GB
External Storage Interface
USB 2.0 Memory Stick / FAT32
Still Image Capture
1920×1080 JPG file
User Key Interface
5-directional key
Light Source
18W LED lamp; colour temperature 4800°K; adjustable intensity
Cable Length
2.0 m
Foot switch
Freeze & still capture
AC Input
90–264 VAC, max 45 W, universal input / full range
Dimension
Width (209 mm) × Depth (101 mm) × Height (250 mm)
